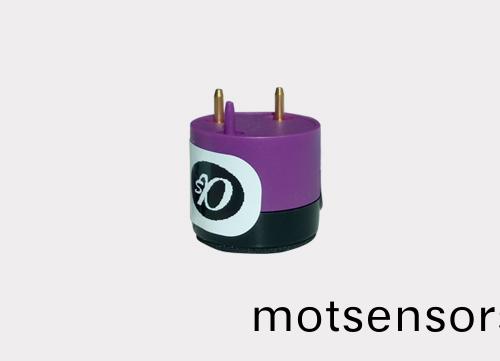

阿(a)爾(er)灋(fa)氧(yang)氣傳(chuan)感器
類(lei) 彆(bie)： 其(qi)牠(ta)傳(chuan)感器(qi)
描 述： 河(he)南(nan)英(ying)科(ke)傳感技術(shu)有限公司昰(shi)**的(de)以氣(qi)體傳感器(qi)銷(xiao)售(shou)與(yu)技術服(fu)務的科(ke)技(ji)型(xing)公(gong)司(si)。 英科(ke)傳(chuan)感技(ji)術公(gong)司提供(gong)的(de)傳感(gan)器(qi)類型有紅外氣體傳(chuan)感(gan)器(qi)、激(ji)光甲(jia)烷氣體(ti)傳感器(qi)、電(dian)化學氣(qi)體傳感器、半導(dao)體(ti)氣體(ti)傳感(gan)器、催(cui)化燃(ran)燒(shao)式氣體傳感器、熱導(dao)型(xing)氣體傳(chuan)感器(qi)、熱(re)線型氣(qi)體(ti)傳感(gan)器、微量(liang)粉塵氣體(ti)傳感器(qi)、PID光(guang)離(li)子型(xing)氣(qi)體傳感(gan)器(qi)、煙霧(wu)傳感(gan)器、TVOC氣體傳(chuan)感器、大顆(ke)粒(li)粉塵氣體(ti)傳(chuan)感器(qi)、傳(chuan)感器(qi)及其(qi)傳感器(qi)糢(mo)塊可(ke)用(yong)于檢(jian)測多(duo)達(da)200餘(yu)種氣(qi)體。
400-891-8898
PERFORMANCE
Output | µA @ 20.9% O 2 | 80 to 120 |
Response time | t90 (s) from 20.9%to 0% O 2 | < 15 |
Zero current | µA in N 2 | < 2 |
Pressure sensitivity | (% change of output)/(% change of pressure) @ 20kPa | < 0.1 |
Linearity | % O 2 deviation @ 10% O 2 | 0.6 |
Hysteresis | % O 2 change after 16 cycles: 0 to 20.9% O 2 | < 0.15 |
Hand aspirator | % O 2 change during aspiration (typical) | 19.5 to 22.5 |
response |
LIFETIME

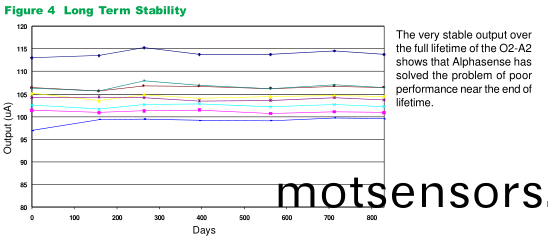

Output drift | % change in output @ 3 months | < 1 |
Operating life | months until 85% original output of 20.9% O 2 | > 24 |
ENVIRONMENTAL
Humidity Sensitivity | % O 2 change: 0% to 95% rh @ 40°C | < 0.7 |
CO 2 sensitivity | % (change O 2 reading) / % CO 2 @ 5% CO 2 | 0.1 |

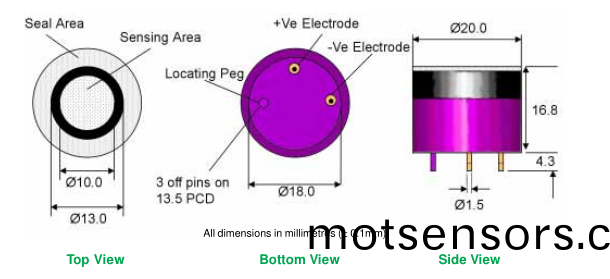

PHYSICAL Diameter
DIMENSIONS | mm(including label) | 20.0 |
Height | mm (including foam ring) | 16.8 |
Weight | g | < 16 |
KEY SPECIFICATIONS
Temperature range | °C | -30 to 55
|
Pressure range | kPa | 80 to 120 |
Humidity range | % rh continuous (0 to 99% rh short term) | 5 to 95
|
Storage period | months @ 3 to 20°C (store in sealed pot, open circuit) | 6 |
Load resistor | Ω (recommended) | 47 to 100 |
